6. Fibonacci Heap

Goals​

  • Understand Priority Queue abstract data structure.
  • Learn specific priority queue implementation, FibonacciHeap.
  • Get familiar with C++ smart pointers, especially shared_ptr and weak_ptr.

Preparation​

Download the handout tarball, 06-fibonacciheap.tar.gz and then decompress it.

$ cd ~
$ wget https://compsec.snu.ac.kr/class/data-structure/files/06-fibonacciheap.tar.gz
$ tar xvf 06-fibonacciheap.tar.gz

Table of contents​

  1. Priority Queue
  2. Fibonacci Heap
  3. Basic Operations
  4. Provided Classes
  5. Goal & Grading
  6. Submission

Priority Queue​

According to cppreference.com:

A priority queue is a container adaptor that provides constant time lookup of the largest (by default) element.

Here are the common interfaces for a priority_queue defined in class PriorityQueue, all of which are declared as a pure virtual function:

  • void insert(const T& item): Insert an item into the priority queue.
  • std::optional<T> extract_min(): Remove the minimum key (if exists) from the priority queue. If priority queue has no element, return std::nullopt.
  • bool empty(): Return true if the priority queue has no element.

Note that these APIs do not impose any restriction to the underlying implementation. In the following, we dive into a specific priority queue implementation, namely Fibonacci Heap.

Fibonacci Heap​

Definitions​

A Fibonacci Heap is one way to implement Priority Queue. Fibonacci Heap is consisted of multiple trees, where each tree satisfies min heap property (i.e, any node's key in a tree is greater than or equal to the key of its parent).

Fibonacci Heap supports following operations:

  1. insert : Insert the key into the heap.
  2. extract_min : Extract the minimum value from the heap.
  3. union : Make a new heap that contains all the elements of two heaps. After union, two original heaps are destroyed.

Note that unlike other Priority Queue implementations which heapify to preserve heap properties, a Fibonacci Heap delays heapify as much as possible. We describe this delay behavior in Basic Operations.

Basic Structure of A Fibonacci Heap​

As mentioned above, Fibonacci Heap is consisted of multiple trees that satisfy min heap property.

One interesting aspect of Fibonacci Heap is that all the nodes are linked by circular doubly linked list, and root nodes and non-root nodes are connected in a different way.

  • All root nodes are connected through the circular doubly linked list, which is called the root list. For example, in the figure below, the root list is [node 9, node 7] (left), [node 9, node 5, node 7] (middle), and [node 9, node 10, node 5, node 7] (right).

  • All non-root nodes are connected through the circular doubly linked list as well, and the list only includes nodes in the same tree and the same depth. Thus, while there are a single root list, there can be multiple non-root lists. For example, all three figures shown with the insert operation have three non-root lists---[node 11], [node 8, node 13], [node 19].

In order to implement this circular doubly linked list while maintaining the tree hierarchy, both each node (both root and non-root node) has following four pointers: parent, child, left sibling and right sibling.

It is important to note that if you have one pointer which pointes to any node in the root list, you can traverse all the trees in the Fibonacci Heap. For this reason, our FinonacciHeap class contains only one pointer, which points to the node that contains the minimum element (which is called node_min).

Basic Operations​

Insert​

Fibonacci Heap simply inserts a new node into the root list, meaning that the new node alone becomes the tree with a single node.

Note that this mechanism has a performance trade-off. It allows the node insertion to be performed in a constant time. However, such a simple insertion mechanism is possible at the cost of slowing down the operation extracting the minimum value. Specifically, extracting the minimum value itself can be fast because Fibonacci Heap always knows where the current minimum value is located (as it is always pointed by min_node). However, so as to prepare for an next operation extracting the minimum value, Fibonacci Heap has to locate the next minimum value, which is comparatively slow. In order to make the insertion operation fast, Fibonacci Heap delays this preparation operation.

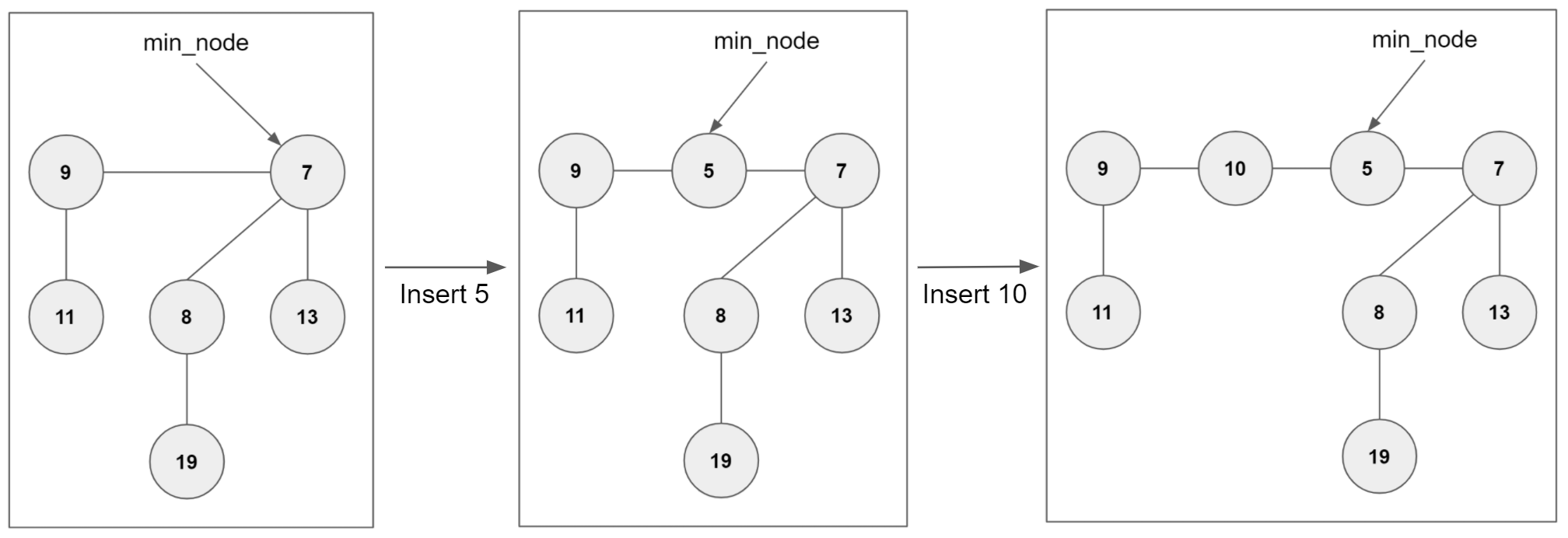

fheap-insert

For instance, the figure above shows the insert operation, which 1) inserts the new node into the root list to be the left of the min_node and 2) update min_node to point to the smallest node in the root list. For instance, after inserting node 5, the root list is extended with [node 9, node 5, node 7], where min_node is updated to point to node 5. Here, node 5 is located left of node 7, which was the previous min_node. Inserting node 10 is performed in a similar way---node 10 becomes the part of the root list (i.e., [node 9, node 10, node 5, node 7]), and node 10 is placed at the left of previous min_node, node 5. In this case, since node 5 is still the minimum element, min_node is not updated.

Extract​

Extracting the minimum value is performed with following two stages:

  1. extracting the minimum value itself; and
  2. consolidation.

First, extracting the minimum value itself is simple. it 1) returns the minimum node (again, pointed by min_node) 2) removes the minimum node from the root list, and 3) adds all immediate children nodes of the minimum node into the root list.

fheap-extract-1

For instance, the figure above shows the extracting the minimum value, which 1) returns the minimum element 7 and 2) remove [node 7] from the root list. At this time, the min_node points to any other node in the root list. In above figure, the min_node points to [node 10]. 3) Insert [node 8] and [node 13] into the root list.

After extracting the minimum value itself, you must have to consolidate the heap that is the work we have delayed in the insert operation.

Consolidate​

The purpose of consolidate operation is to make the heap with the trees that have a distinct degree. The degree represents the number of children. You should perform: For each node in the root list, if two nodes have the same degree, make one to the child of x. Don't forget that the trees are min heap ordered.

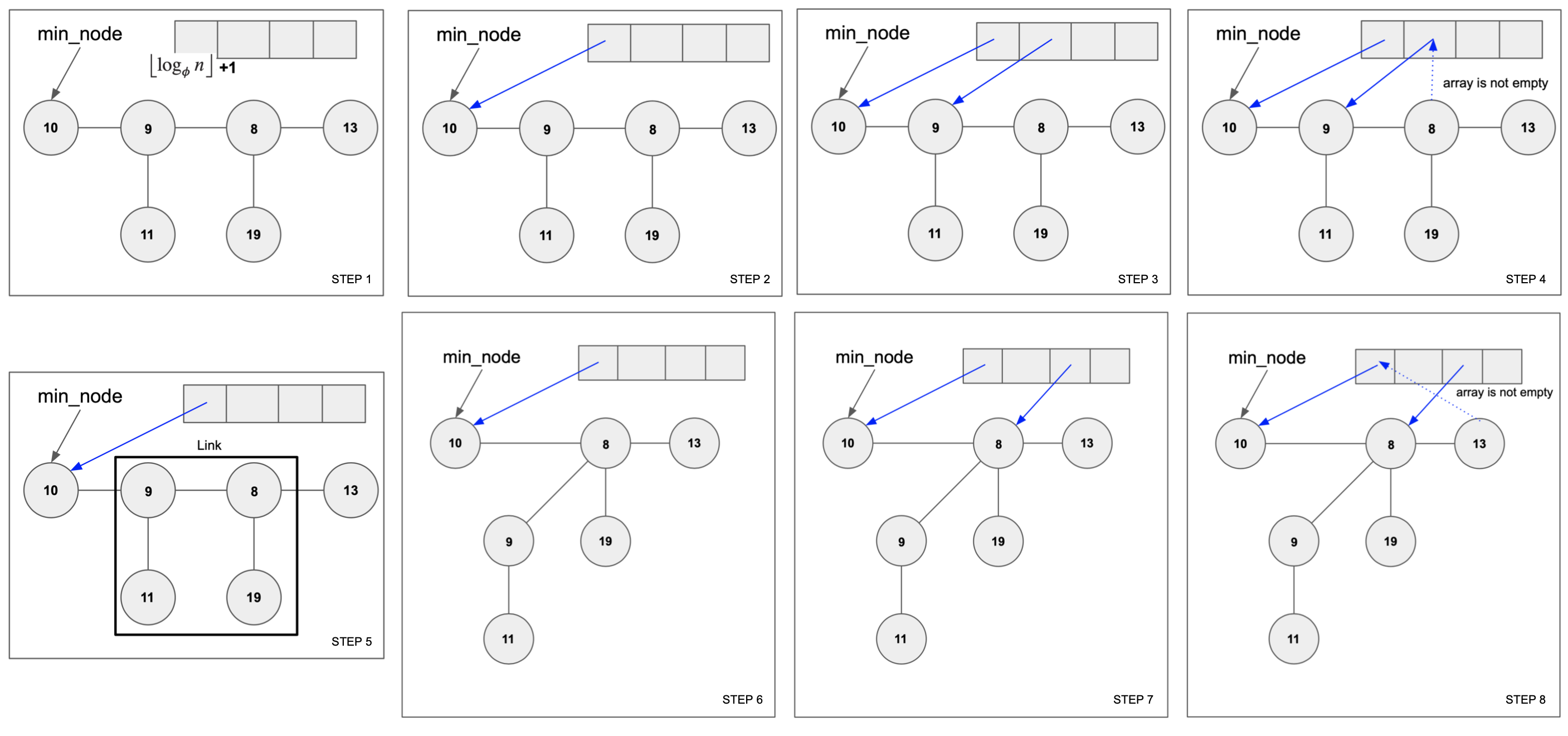

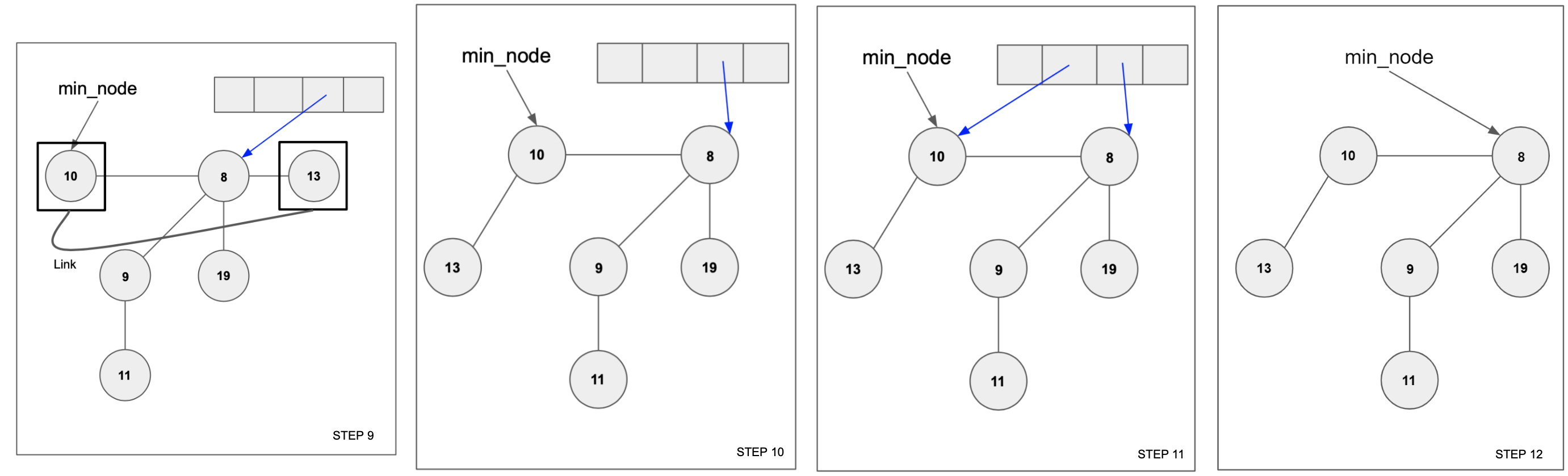

fheap-consolidate-1 fheap-consolidate-2

  1. Prepare an array with a specific length (provided in the figure). Note that the constant number phi is the golden ratio. While it would be ideal to allcoate the array with the size of log n (base phi) + 1, this assignment does not strictly restrict the length of the array. So you may over-allocate the array so as to avoid any runtime error issues.

For instance, you can find an array with a specific length 4 in Step 1, as log 8(base phi) is 3.72....

  1. Traverse the root list starting from min_node. Let d be the degree of the root node, where the degree is the number of all children nodes in a corresponding tree. For instance, the degree of node 10 is zero, the degree of node 9 is one, and the degree of node 8 is one.

While traversing each root node in the root list, make array[d] point to the node if array[d] is empty. Otherwise, we merge two trees to be a single tree---one tree rooted by the currently iterating root node and another tree rooted by the node pointed by array[d]. As we merge, one root node will be the child of another root node (NOTE: you should not forget to satisfy the min heap property!). This process can be done successively.

For instance, Step 2) The degree of [node 10] is zero and array[0] is empty, make array[0] point to the [node 10]. Step 3) Similar to Step 2, the degree of [node 9] is one and array[1] is empty, make array[1] point to [node 9], Step 4) The degree of [node 8] is one however, array[1] is not empty. Step 5) So, merge [node 9] and [node 8]. Step 6) As we merge, we need to satisfy min heap property. So, [node 9] will be the child of [node 8]. Step 7) After merging, the degree of [node 8] is two and array[2] is empty, make array[2] point to [node 8]. Step 7-11 show another merging process, especially merging [node 10] and [node 12].

Finally, insert the array's each element into the root list. After completing this process, min_node should still point to the minimum node.

Step 12 shows that inserting [node 10] and [node 8] into the root list. You can find out min_node points to [node 8].

Provided Classes​

In this assignment, Three classes are provided: PriorityQueue, FibonacciNode, FibonacciHeap. All of these classes use templates, which identifies the type of the node's element. No need to worry about many classes: You need to implement only one class! (FibonacciHeap)

Class PriorityQueue​

The PriorityQueue class provides interfaces of Priority Queue. Notice three pure virtual functions in this class. Note that C++ doesn't have an interface or abstract keyword (as you can find in Java). Instead, C++ offers to declare pure virtual functions, which defines a class as an interface or abstract class.

Class FibonacciNode​

FibonacciNode class specifies the internal node of FibonacciHeap. Note that FibonacciNode has four pointers, which points to parent, child, left sibling, and right sibling.

FibonacciNode class has following two more member variables:

  • T key
  • size_t degree : It represents the nunmber of children the node has.

In many previous assignments, you implemented lots of data structures with std::unique_ptr, one type of smart pointers. In this assignment, you should implement with another C++ smart pointers, std::shared_ptr and std::weak_ptr.

Note that std::unique_ptr represents the only owner of the object. In contrast, std::shared_ptr and std::weak_ptr can represent multiple owners of the object. The difference between std::shared_ptr and std::weak_ptr is that std::shared_ptr affects the reference counter while std::weak_ptr does not.

Please refer the links that would be helpful to understand std::shared_ptr and std::weak_ptr.

Class FibonacciHeap​

FibonacciHeap is a class template, which provides common interfaces for Fibonacci Heap. You will need to complete the implementation of this class, particularly through filling up the TODO marked regions.

This class has the following functions:

  • void insert(const T& item) : Insert an item into the Finonacci Heap.
  • FibonacciNode<T>* get_min_node() : Return the raw pointer of the min node.
  • std::optional<T> get_min() const : Return the value of the min node. If the heap is empty, return std::nullopt.
  • std::optional<T> extract_min() : Return the value of the min node AND remove the min node from the heap. After Deleting min node from the heap, insert the children into the root lists of the heap. Then, you need to reduce the number of trees in the heap with consolidate() function. If the heap is empty, return std::nullopt.
  • bool empty() const : Return true if the heap is empty, false otherwise.
  • size_t size() const : Return the number of nodes that the heap contains.
  • void consolidate() : Consolidate the root list of the heap.
  • void merge(std::shared_ptr<FibonacciNode<T>>& x, std::shared_ptr<FibonacciNode<T>>& y) : Make y as a child of x. You will accordingly need to change the degree of x.

Goal & Grading​

Goal​

Like the assignments you've worked before, your goal is to implement FibonacciHeap which satisfies the properties described above. One simple way to check your implementation is to pass all the tests written in tests/fheap_test.hpp. Since some tests involve random inputs, we encourage you to run the tests multiple times. Moreover, we strongly encourage you to write your own additional tests, which check corner cases and thus make your code robust.

Grading Policy​

The grading policy of this assignment is as follows:

  1. If your program pass all the tests (including hidden tests), you will get 100 points.
  2. If your program have memory leak, you will get 20% penalty.
  3. If your program have memory error, you will get 20% penalty.

Total: 100 points

Delay Submission​

We allow five days of the late submission. There will be a 10% penalty from the total score per day (50% penalty at max). If your submission is delayed more than 5 days, you will get 0 points.

Submission​

Testing your own programs​

In 06-fibonacciheap, you should run the following commands to compile your own implementation.

$ pwd
/xxx/xxx/xxx/06-fibonacciheap
$ mkdir build
$ cd build
$ cmake ../
$ make
$ ls tests/
./tests/fheap_test
$ ./tests/fheap_test

If you've all done correctly, the output will look like:

============================================================
All tests passed (XX assertions in XX test cases)

and you are ready to submit!

Submission​

Prepare your submission with the following commands:

$ pwd
/xxx/xxx/xxx/06-fibonacciheap
$ ./prepare-submit.sh
[*] Remove tar file...
[*] Compress files...
./include/fheap.hpp
[*] Successfully Compressed!
[*] Done! You are ready to submit: assign6.tar.gz

Note that if you get a permission error while executing prepare-submit.sh, run chmod +x ./prepare-submit.sh and try again. the last assignment.
